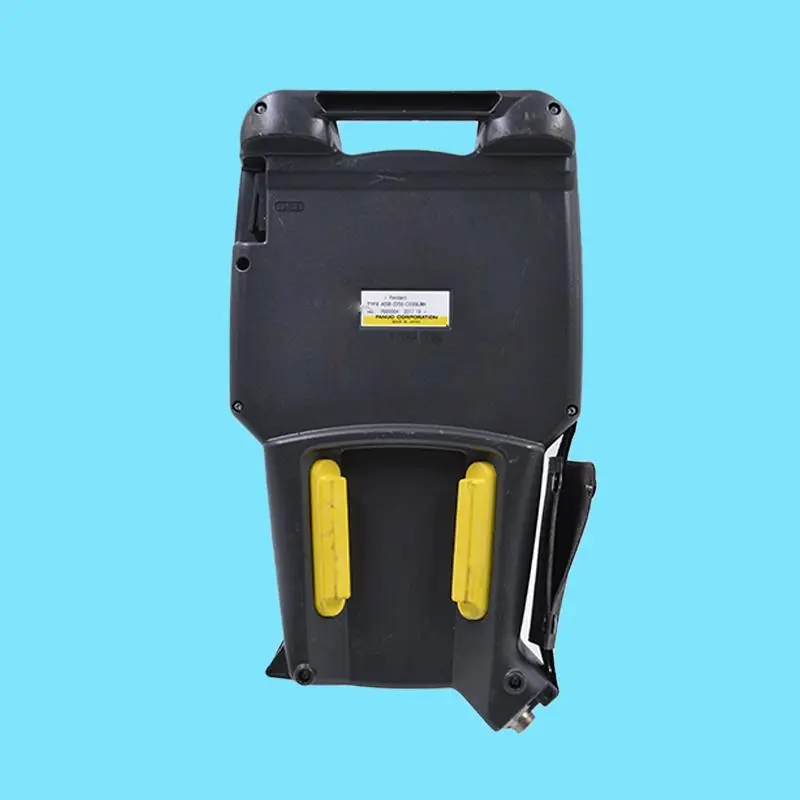

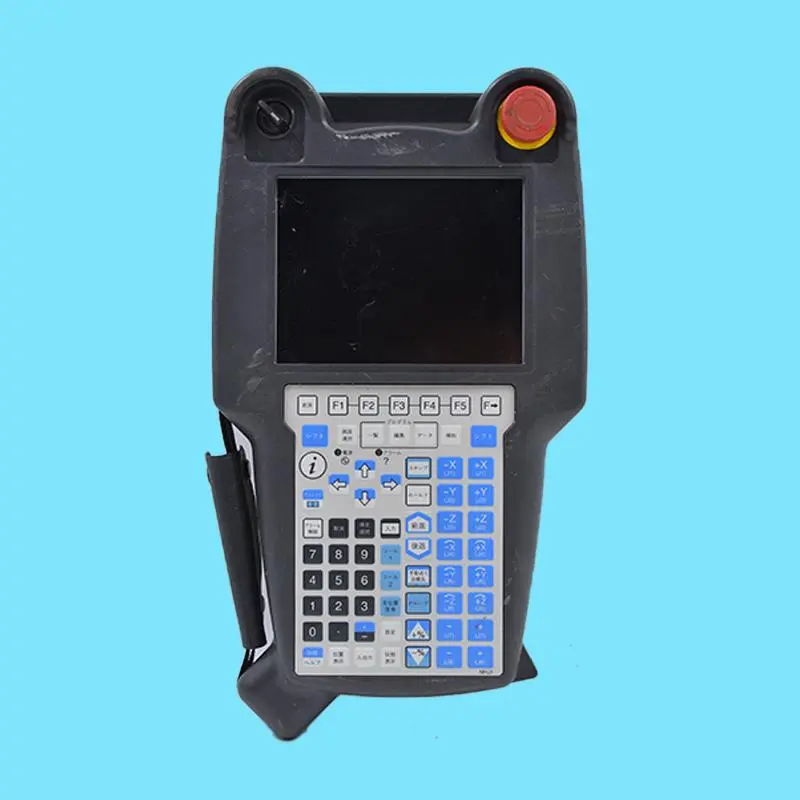

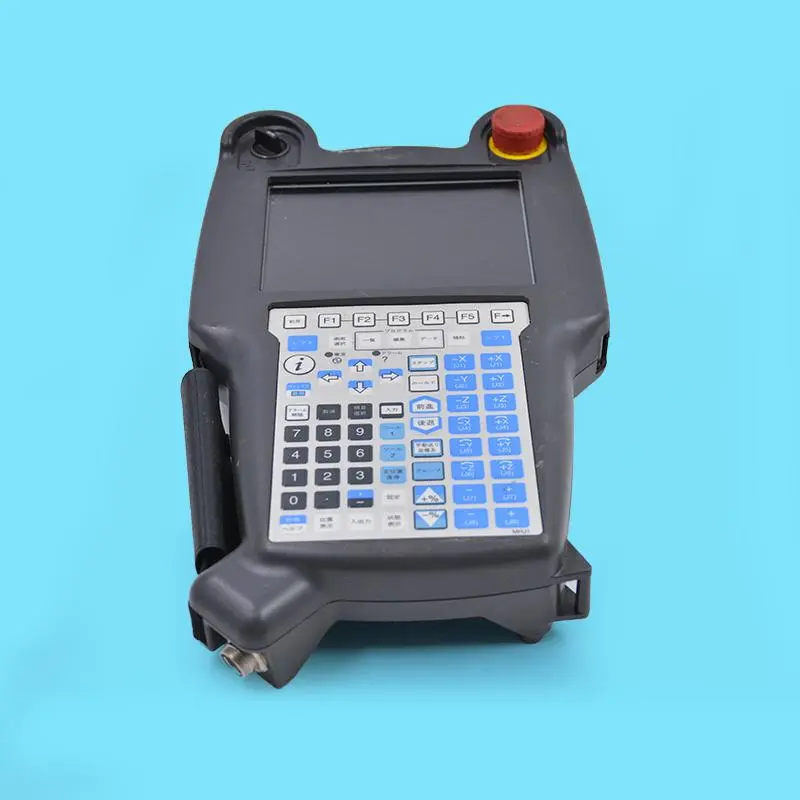

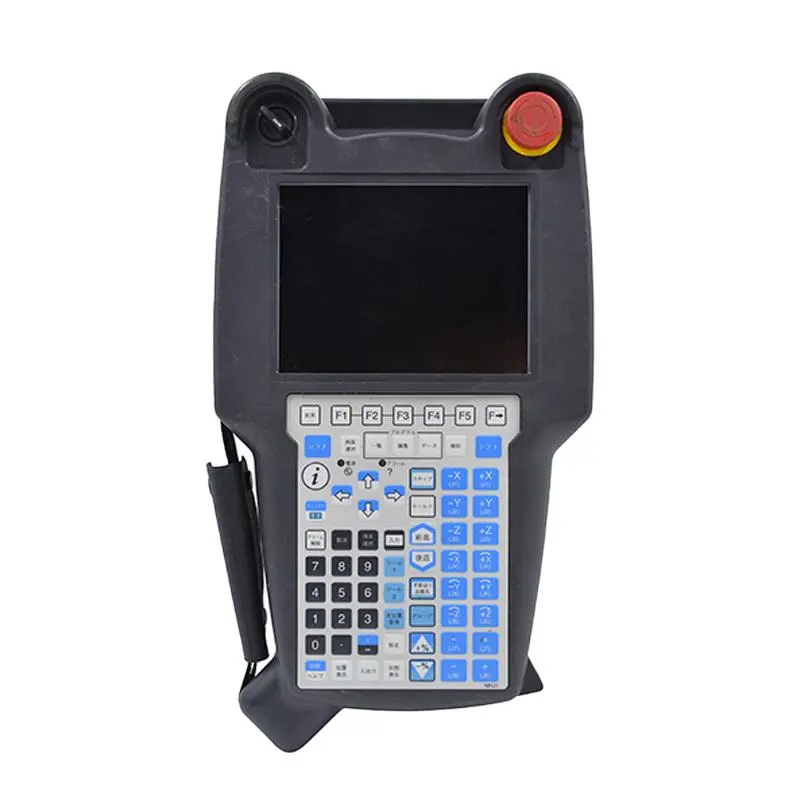

FANUC A05B-2256-C100 Robot Teach Pendant

FANUC A05B-2256-C100 Robot Teach Pendant

Name: FANUC A05B-2256-C100 Robot Teach Pendant
Brand: Hangzhou Weite CNC Equipment Co., Ltd.

User-Friendly Interface: The A05B-2256-C100 teach pendant offers an intuitive touchscreen interface, allowing operators to easily program and control FANUC robots with minimal training.

Precise Control: Designed for high-precision operations, the teach pendant provides fine control over robot movements, ensuring accuracy in tasks like assembly, welding, and painting.

Durability: Built to endure industrial environments, the A05B-2256-C100 is resistant to dust, moisture, and temperature variations, making it ideal for use in factories and production lines.

Seamless Integration: Fully compatible with FANUC robots, the teach pendant allows for easy programming, troubleshooting, and maintenance, improving productivity and reducing downtime in automated systems.

Enhanced Safety Features: The pendant includes emergency stop buttons and safety functions to protect operators and equipment during robot operation.

Get A Quote

Key Features of FANUC Robot Parts A05B-2256-C100 Teach Pendant

Intuitive User Interface: The A05B-2256-C100 features a user-friendly touchscreen, enabling easy programming, monitoring, and operation of FANUC robots with minimal training.

High-Precision Control: It offers precise control over robot movements, ensuring accurate execution of tasks such as assembly, welding, and painting.

Industrial Durability: Designed to withstand harsh factory conditions, the teach pendant is resistant to dust, moisture, and temperature fluctuations, ensuring long-term reliability.

Seamless Integration: Fully compatible with FANUC robot systems, it ensures smooth communication and streamlined programming, enhancing productivity.

Safety Functions: Equipped with emergency stop and safety features, the pendant ensures operator safety during robot operation and maintenance.

Technical Specification of FANUC A05B-2256-C100 Teach Pendant

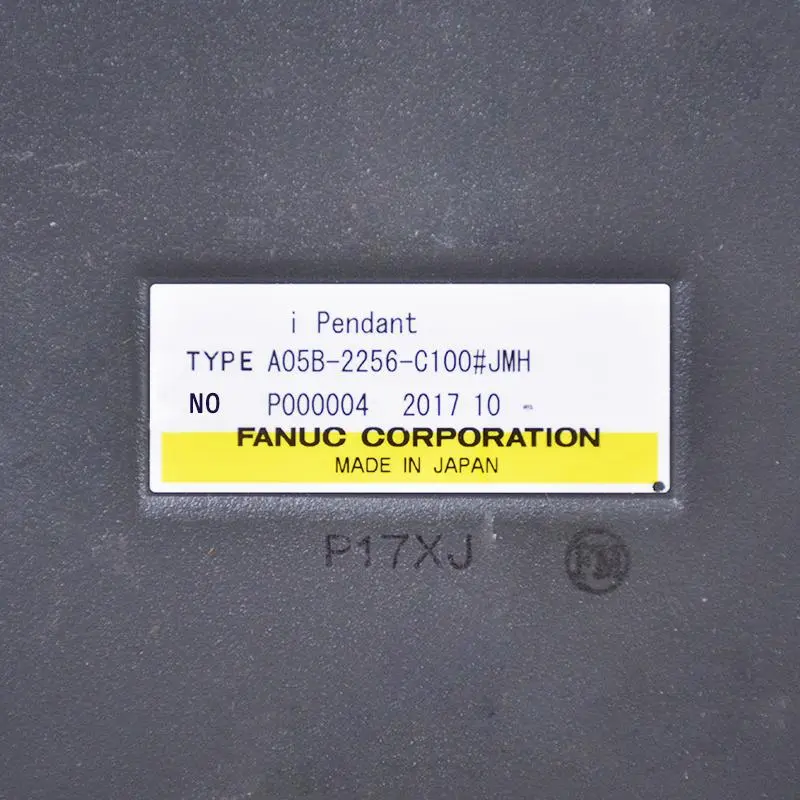

Model Number	A05B-2256-C100
Type Robot	Teach Pendant
Display	10.4-inch TFT Color Touchscreen
Input Interface	Touchscreen, Jog Dial, Soft Keys
Operating Voltage	24V DC
Operating Temperature	0°C to 50°C
Dimensions	(L x W x H) 320 x 180 x 75 mm
Weight	Approx. 1.2 kg
Protection Class	IP65 (Dustproof and Waterproof)
Communication	FANUC Robotics Protocol
Mounting	Hand-held, with flexible cable
Emergency Stop	Yes (with button)
User Interface	Touchscreen and Jog Dial for precise control
Compatibility	Compatible with FANUC robots and controllers
Power Consumption	Low power consumption

Table of FANUC A05B-2256-C100 Teach Pendant

1. Ergonomic Design

The A05B-2256-C100 is designed for ease of use with a comfortable grip, lightweight construction, and an intuitive touchscreen interface, minimizing user fatigue during extended use.

2. High Durability

Built to withstand tough industrial conditions, it has an IP65 protection rating, making it resistant to dust, moisture, and other contaminants commonly found in factory environments.

3. Precise Control

The teach pendant provides fine control over robot movements, essential for tasks like welding, assembly, and material handling, ensuring accuracy in operations.

4. Seamless Integration

Fully compatible with FANUC robots, it allows for quick programming, system monitoring, and troubleshooting, improving operational efficiency and reducing downtime.

5. Safety Features

Equipped with an emergency stop button, the A05B-2256-C100 ensures operator safety by allowing immediate halting of robot movements in case of malfunction or hazard.

Table of FANUC A05B-2256-C100 Teach Pendant

Related Fanuc A05B-2256-C100 Teach Pendant Applications

CNC Machine Tool Automation
Used for programming and controlling FANUC robotic arms in CNC machine tool automation, ensuring precise movements and reducing cycle times.

Automated Assembly Lines
Powers robotic systems for tasks such as assembly, part picking, and positioning, enhancing production speed and accuracy.

Welding Robots
Provides easy programming and control for robotic welding systems, improving weld quality and reducing operator intervention.

Material Handling Systems
Used in material handling applications for tasks like picking, placing, and sorting parts, ensuring smooth automation of logistics processes.

Packaging and Palletizing
Controls robots in packaging and palletizing tasks, improving efficiency and consistency in packaging lines for products across various industries.

Inspection and Quality Control
Integrates with robotic systems for inspection tasks, ensuring quality checks and precise part positioning during the production process.

Medical Device Manufacturing
In medical device production, the teach pendant helps control robots for assembling small, intricate components with high precision and minimal error.

Related Fanuc A05B-2256-C100 Teach Pendant Applications

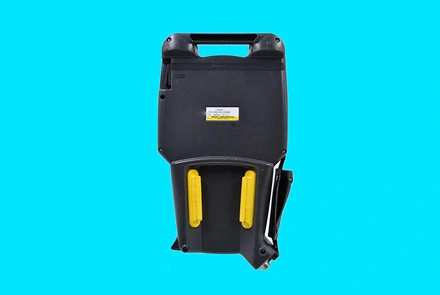

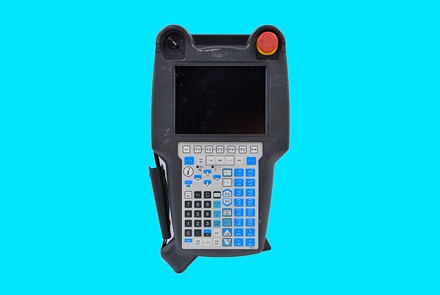

Case Studies of FANUC A05B-2256-C100 Teach Pendant

1. Automotive Assembly Line

The FANUC A05B-2256-C100 Teach Pendant was used in an automotive manufacturing plant to control robotic arms for assembling car parts. Its intuitive interface allowed operators to quickly program and adjust robot movements, improving the speed and precision of assembly while reducing manual labor.

2. Electronics Packaging

In an electronics packaging facility, the A05B-2256-C100 pendant facilitated the control of robotic arms for picking and placing components into packaging trays. The teach pendant's ergonomic design and high-precision control resulted in faster packaging cycles, improving overall throughput and reducing defects.

These case studies demonstrate how the FANUC A05B-2256-C100 Teach Pendant enhances productivity and accuracy in automated industrial processes.
