Fanuc AC Spindle Drive

Name: Fanuc AC Spindle Drive
Brand: Hangzhou Weite CNC Equipment Co., Ltd.

Fanuc AC Spindle Drive A06B-6220-H026#H600

Reliable Spindle Control: The A06B-6220-H026#H600 provides precise and stable control for spindle motors, ensuring smooth operation in CNC machines and automated systems.

High Performance: Designed for high-speed and high-torque applications, it delivers exceptional performance in machining, milling, and other precision tasks.

Energy Efficient: Optimized for energy-saving operation, the drive reduces power consumption while maintaining consistent, high-performance output.

Durability: Built to withstand harsh industrial environments, it is resistant to dust, vibration, and temperature fluctuations, ensuring long-term reliability.

Seamless Integration: Compatible with FANUC CNC systems, the drive easily integrates into existing setups, enabling smooth communication and control for efficient manufacturing processes.

Get A Quote

Key Features of FANUC AC Spindle Drive A06B-6220-H026#H600

High Precision Control: The A06B-6220-H026#H600 ensures accurate and stable spindle speed control, improving the precision of CNC machines and reducing machining errors.
Enhanced Performance: Designed for high-speed, high-torque applications, it provides powerful and reliable performance in demanding machining tasks, such as milling and turning.
Energy Efficiency: Features advanced technology to reduce energy consumption while maintaining optimal performance, lowering overall operational costs.
Durability in Harsh Environments: Resistant to temperature variations, dust, and vibration, ensuring reliable performance and minimal maintenance in industrial settings.
Seamless Integration: Fully compatible with FANUC CNC systems, allowing for smooth integration and precise control across various automation setups.

Technical Specifications of Fanuc AC Spindle Drive A06B-6220-H026#H600

Model Number	A06B-6220-H026#H600
Type	AC Spindle Drive
Input Voltage	3-phase 200V to 240V AC
Output Power	7.5 kW (10 HP)
Control Method	Vector Control, Sine Wave Control
Rated Output Current	35 A
Frequency	0 to 400 Hz
Operating Temperature	0°C to 40°C
Cooling Method	Fan Cooling
Protection Class	IP20
Dimensions	(L x W x H) 210 x 150 x 250 mm
Weight Approx.	7.5 kg
Communication Protocol	FANUC Robot Communication Protocol
Compatibility	Fully compatible with FANUC CNC systems, motors, and drives
Cooling Type	Forced air cooling

Model Number of Fanuc AC Spindle Drive

Table of Fanuc AC Spindle Drive

1. Stable Spindle Control

Provides consistent and stable spindle speed regulation for high-precision machining applications, ensuring superior performance in CNC operations.

2. Advanced Protection Features

Equipped with overcurrent, overvoltage, and thermal protection, the drive ensures the longevity and safety of the spindle motor, reducing the risk of damage during operation.

3. Compact and Efficient Design

With a compact size and forced air cooling system, the drive fits into tight spaces while maintaining efficient heat dissipation for continuous operation.

4. Seamless Integration with FANUC Systems

Fully compatible with FANUC's CNC systems, it ensures smooth communication and synchronization across the entire automation setup for seamless operation.

5. Durable and Reliable

Built to withstand industrial environments, it maintains high performance in temperature variations, dust, and vibrations, offering long-term reliability in demanding machining processes.

Table of Fanuc AC Spindle Drive

Related Fanuc AC Spindle Drive Applications

Here are some related applications for the FANUC AC Spindle Drive A06B-6220-H026#H600:

CNC Milling Machines
Provides reliable power for high-speed and high-precision milling, ensuring accurate part production with minimal errors.

CNC Turning Centers
Used in CNC lathes and turning centers for controlling spindle speed and torque, offering smooth and efficient operation in metalworking applications.

Grinding Machines
Powers the spindle motor in grinding machines, ensuring stable and consistent performance for fine grinding and surface finishing tasks.

Wire EDM Machines
Used in wire Electrical Discharge Machining (EDM) for controlling spindle speed and ensuring precision in intricate cutting tasks.

Drilling Machines
Supplies the necessary power for high-torque drilling operations, enabling efficient and precise drilling in various materials.

Rotary Tools
Powers rotary tool spindles for high-speed operations in applications such as engraving, polishing, and cutting.

Metal Cutting Machines
Supports high-performance metal cutting applications, including shaping and punching operations, with efficient and stable spindle control.

Related Fanuc AC Spindle Drive Applications

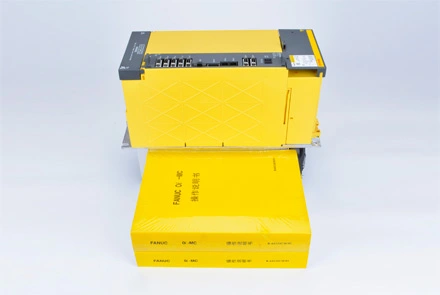

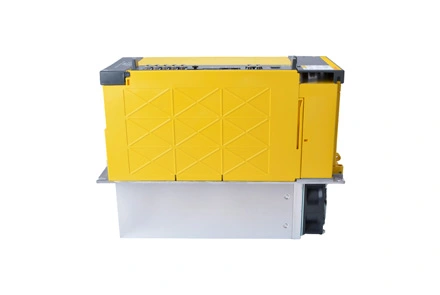

Case Studies of Fanuc AC Spindle Drive

1. Precision CNC Machining

The FANUC A06B-6220-H026#H600 spindle drive was used in a precision CNC machining center for aerospace components. Its stable speed control and high torque enabled smooth milling operations, enhancing machining accuracy and reducing production time. The energy-efficient design helped lower overall operational costs, while the advanced protection features minimized downtime.

2. Metal Cutting and Grinding

In a metal cutting facility, the A06B-6220-H026#H600 was utilized in high-speed grinding machines. The spindle drive provided precise control of spindle speed, ensuring high-quality finishes and consistent performance. Its durability in harsh industrial conditions contributed to increased uptime and reduced maintenance costs.
